SD49225DB-HC
https://eurotechnology.az/product/dahua/sd49225db-hc
DAHUA SD49225DB-HC 2MP 25X HDCVI PTZ KAMERA, 2MP Full HD təsvir keyfiyyəti, 25X optik zoom və 100 metr IR məsafəsi ilə gecə və gündüz aydın görüntü təmin edir. 360° fırlanma, WDR, HDCVI/TVI/AHD/CVBS dəstəyi və möhkəm quruluşu ilə geniş ərazilərin təhlükəsizlik monitorinqi üçün ideal seçimdir.

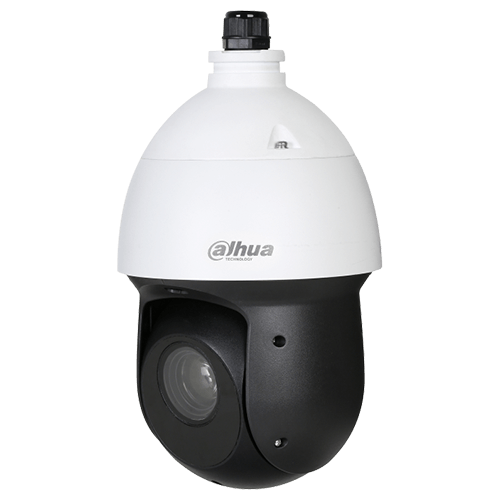

Dahua SD49225DB-HC
https://eurotechnology.az/product/dahua/sd49225db-hc
DAHUA SD49225DB-HC 2MP 25X HDCVI PTZ KAMERA, 2MP Full HD təsvir keyfiyyəti, 25X optik zoom və 100 metr IR məsafəsi ilə gecə və gündüz aydın görüntü təmin edir. 360° fırlanma, WDR, HDCVI/TVI/AHD/CVBS dəstəyi və möhkəm quruluşu ilə geniş ərazilərin təhlükəsizlik monitorinqi üçün ideal seçimdir.
Stokda yoxdur
Haqqında
DAHUA SD49225DB-HC 2MP 25X HDCVI PTZ KAMERA, 2MP Full HD təsvir keyfiyyəti, 25X optik zoom və 100 metr IR məsafəsi ilə gecə və gündüz aydın görüntü təmin edir. 360° fırlanma, WDR, HDCVI/TVI/AHD/CVBS dəstəyi və möhkəm quruluşu ilə geniş ərazilərin təhlükəsizlik monitorinqi üçün ideal seçimdir.
| Növ | Analoq |
| Meqapixel | 2 MP |
| Obyektiv | PTZ |
| İşıqlandırma | İR |
| İşıqlandırma məsafəsi | 100m |
| Material | Plastik |
| İş mühiti | Outdoor |
Ətraflı
| Camera | ||||
| Image Sensor | 1/2.8" CMOS | |||
| Pixel | 2 MP | |||
| Max. Resolution | 1920 (H) × 1080 (V) | |||
| ROM | 128 MB | |||
| RAM | 256 MB | |||
| Electronic Shutter Speed | 1/3 s–1/30,000 s | |||
| Scanning System | Progressive | |||
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (IR light) | |||
| Illumination Distance | 100 m (328.08 ft) (IR) | |||
| Illuminator On/Off Control | Zoom Prio; manual | |||
| Illuminator Number | 6 (IR) | |||
| Lens | ||||
| Focal Length | 4.8 mm–120 mm | |||
| Max. Aperture | F1.6–F3.5 | |||
| Field of View | H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° | |||
| Optical Zoom | 25× | |||
| Focus Control | Auto; semi-auto; manual | |||
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) | |||
| Iris Control | Auto; manual | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 1655.2 m (5430.45 ft) | 653.8 m (2145.01 ft) | 331.0 m (1085.96 ft) | 165.5 m (542.98 ft) | |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | ||||
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° | |||
| Manual Control Speed | Pan: 0.1°–200°/s Tilt: 0.1°–120°/s | |||
| Preset Speed | Pan: 240°/s; Tilt: 200°/s | |||
| Preset | 300 | |||
| Tour | 8 (up to 32 presets per tour) | |||
| Pattern | 5 | |||
| Scan | 5 | |||
| Power-off Memory | Yes | |||
| Idle Motion | Pattern;Preset;Scan;Tour | |||
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) | |||
| Video | ||||
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) | |||
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) | |||
| Day/Night | Yes | |||
| BLC | Yes | |||
| WDR | 120dB | |||
| HLC | Yes | |||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | |||
| Gain Control | Auto; manual | |||
| Noise Reduction | 2D NR; 3D NR | |||
| Defog | Electronic | |||
| Digital Zoom | 16× | |||
| Image Rotation | 180° | |||
| Privacy Masking | Yes | |||
| S/N Ratio | ≥50 dB | |||
| Function | ||||
| CVI Product Output Mode | TVI;CVI;CVBS;AHD(CVBS is only used for debugging) | |||
| Certification | ||||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 | |||
| Port | ||||
| Analog Output | 1 channel (CVBS/CVI output, BNC) | |||
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) | |||
| Audio Input | 1 channel (LINE IN, bare wire) | |||
| Alarm Input | 2 (on-off value input: 0–5 VDC) | |||
| Alarm Output | 1 | |||
| Alarm Linkage | Scan; preset; tour; pattern; alarm digital output | |||
| Alarm Event | Alarm input | |||
| Power | ||||
| Power Supply | 12 VDC, 3 A ± 10% | |||
| Power Consumption | Basic: 10 W Max.: 22 W (PTZ + illuminator + heater) | |||
| Environment | ||||
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |||
| Operating Humidity | ≤95% | |||
| Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection | |||
| Structure | ||||
| Product Dimensions | 269.9 mm × Φ160.0 mm (10.63" × Φ6.30") | |||
| Net Weight | 3.0 kg (6.61 lb) | |||
| Gross Weight | 4.2 kg (9.26 lb) | |||
625.66 azn
Stokda yoxdur
