NVR2116-I

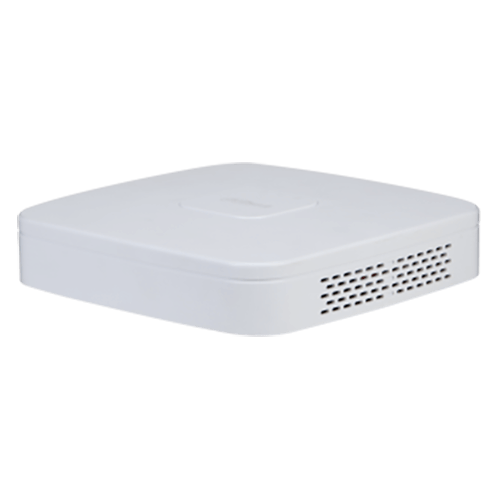

DAHUA NVR2116-I 16CH NETWORK VIDEO RECORDER

Category	Specification
Channels	16 IP camera channels
Max Resolution	Up to 12 MP per channel; real-time 4K (3840×2160) HDMI output
Recording Bandwidth	200 Mbps (access/storage); 100 Mbps (forward)
Decoding Capability	• AI off: 1×12 MP, 1×8 MP, 2×5 MP, 3×4 MP, 6×1080 p @30 fps • AI on: 1×8 MP, 1×5 MP, 2×4 MP, 4×1080 p @30 fps
Video Outputs	1× HDMI (up to 4K); 1× VGA (1080p), simultaneous output
Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
AI Features (On‑Device)	• 1-channel face detection/recognition (10 DBs, 5 k faces) • 2‑channel perimeter protection • 4‑channel SMD Plus
AI by Camera (via IPC)	Supports face, perimeter, SMD Plus (4 to 6 channels depending on model)
Playback	Up to 16‑channel simultaneous playback; smart/event-tag search
Storage	1× SATA HDD, up to 6–10 TB (officially up to 6 TB)
USB Ports	2× USB 2.0 (rear)
Network Interface	1× RJ‑45 10/100/1000 Mbps; ONVIF Profiles S/T/G, RTSP, CGI, SDK, comprehensive IP protocols
Audio & Alarm I/O	1× RCA in, 1× RCA out; general and anomaly alarms supported
Power	12 V DC, 1.5 A; ≤ 10 W consumption (without HDD)
Dimensions & Weight	204.6 × 206.4 × 48.1 mm; net ~0.45 kg; gross ~1.07 kg
Operating Conditions	–10 °C to +55 °C; 10–93 % RH (non-condensing)
