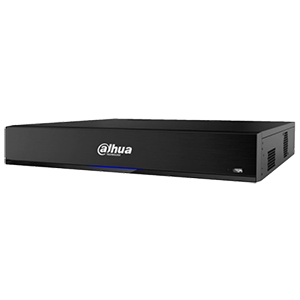

Dahua NVR1108HS-8P-S3/H
234.44 azn
Haqqında
Dahua NVR1108HS-8P-S3/H 8 kanal PoE NVR; 6TB HDD; 4×1080p@30 fps; Bandwidth 80 Mbps;
| Növ | NVR |
| Kanal sayı | 8 kanal |
| PoE dəstəyi | PoE |
| Meqapixel | 8 MP |
| Max HDD sayı | 1 HDD |
| Max HDD həcmi | 6 TB |
Ətraflı
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Access Channel | 8 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbpsfor forwarding. |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability | 1–ch@8MP(30FPS)or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS)8–ch@720P(30FPS) |
| Video Output | 1 VGA/1HDMI simultaneous videooutput, maximum resolution 1080P |
| Multi-screen Display | 1/4/8/9 |
| Third Party CameraAccess | Onvif, RTSP |
| Video Smart H.265+/Smart H.264+/H.265/H.264 | |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6,RTSP, UDP, NTP, DHCP, DNS, P2P |
| Mobile Phone Access | iDMSS(iOS), gDMSS(Android) |
| Access Standard | ONVIF(profile T/profile S/profile G),CGI,SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Multi-channel Playback | Up to 8 channels playback |
| Record Mode | Priority of record mode: Manual recording >alarm recording > motion detection recording > timed recording |
| Storage | Local HDDand network |
| Backup | USB device |
| Playback Function |
|
| GeneralAlarm | Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
AnomalyAlarm | Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network securityanomaly |
| Alarm Linkage | Video recording, snapshot, log, preset, tour |
HDD | 1 SATA 2.0 port, up to 6 TB for a single HDD. |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| RCA Input | 1 |
| RCA Output | 1 |
| Alarm | None |
| Network | 1 RJ–45port (10/100 Mbps), 8 RJ–45ports with PoE power supply (10/100 Mbps) |
| Power Supply | DC48V/53V, 2A/1.8A |
Power Consumption | Total output of NVR is ≤ 10W (without HDD) Total outputpower of PoEis 72W, the maximum outputpower of a single portis 25.5W |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross weight | 1.98 kg (4.37 lb) |
| Product Dimensions | 260 mm×225 mm×47.6 mm (W × L × H) |
| Box Dimensions | 87 mm×331 mm×312 mm (W × L × H) |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Operating Humidity | 10%~93% |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000 m (9843 ft) |
| Installation | Desktop mounting |
