Dahua DHI-ASI1201M-MEW

Yeni
DHI-ASI1201M-MEW

Haqqında

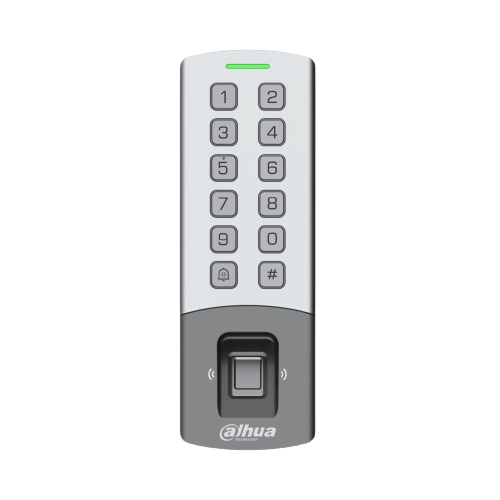

DAHUA DHI-ASI1201M-MEW Card Swiping,Password Access Standalone – RFID kart və şifrə ilə giriş təmin edən müstəqil işləyən nəzarət cihazıdır. IP66 hava davamlılığı ilə daxili və açıq sahələr üçün uyğundur. Kiçik obyektlərdə giriş təhlükəsizliyini artırmaq üçün ideal seçimdir.

Cihaz tipi Controller
Kart tipi ID
Qoşulma Wifi
Barmaq izi 10000
Kart sayı 10000
Qoruma IP65

Ətraflı

System
Main ProcessorEmbedded Processor
Button TypeMechanical
Network ProtocolIPv4;UDP;P2P;IPv6;TCP
OSDP ProtocolYes
InteroperabilityONVIF;CGI
SDK and APIYes
Basic
Product TypeStandalone
BuzzerYes
BacklightYes
Casing MaterialPC and zinc alloy
Function
Verification MethodCard;Password;Remote
Period List128 periods
Holiday Period128 periods
Network UpdateYes
First User UnlockYes
Remote VerificationYes
Restricted List/Trusted ListYes
Peripheral Card ReaderIncludes the 1-channel RS-485 card reader and 1-channel Wiegand card reader. You can easily switch between the two with just the flip of the switch.
Issuing Card by Master CardYes
Multi-user AuthenticationYes
Real-time MonitoringYes
Multi-factor AuthenticationYes
Web ConfigurationYes
Auto RegistrationYes
RFID
Card TypeID card;M1 Card;Desfire Card (EV3，Compatible with Dahua card by default)
Modulation TypeAM
Frequency Range13.56 MHz and 125 kHz
Max. Transmission Power

125 kHz: 66 dBuA/m@10 m

13.56 MHz: 42 dBuA/m@10 m

Network
Wi-FiYes
Wireless StandardIEEE 802.11b, 802.11g and 802.11n
Wireless Frequency Range2,400–2,483.5 MHz
Max. Transmission Power≤20 dBm@2,400–2,483.5 MHz
Wireless Security EncryptionWPA/WPA2 and WPA-PSK/WPA2-PSK
Performance
IC Card EncryptionYes
Card Reading Distance0 mm–30 mm (0"–1.18")
User
User (Card) TypeNormal, VIP, patrol, guest, blocklist, and other users, custom user 1 and custom user 2
Capacity
User Capacity10,000
Card Capacity10,000
Password Capacity10,000
Record Capacity100,000
Port
RS-4851 port that can also be used by the Wiegand card reader
Wiegand

1 port that can also be used by the RS-485 card reader. (Wiegand input is 26, 34 or 66 bits self-adaptive.

 Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.)

Network Port1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Alarm Input2 channels
Alarm Output1 channel that can also be used by the doorbell output
Alarm LinkageYes
Doorbell1 channel that can also be used by the alarm output
Exit Button1 channel
Door Status Detection1 channel
Lock Control1 channel
Power Output Port1 channel (12 V, 0.5 A)
Alarm
Anti-pass BackYes
Tamper AlarmYes
Duress AlarmYes
Door Sensor TimeoutYes
IntrusionYes
Illegal Card Exceeding ThresholdYes
General
Power AdapterOptional
Power Supply12 VDC, 1.5 A
Protection

IP65

IK08

Power Consumption≤18 W
Product Dimensions169.0 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (H× W × D)
Packaging Dimensions219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (H× W × D)
Transport Package Dimensions585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H× W × D)
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity5%–95% (RH), non-condensing
Operating EnvironmentOutdoor
Gross Weight0.65 kg (1.43 lb)
AccessoryThe bracket of wall mount is included.
InstallationWall Mount
CertificationsCE
Storage Temperature–20 °C to +70 °C (–4 °F to + 158 °F)
Storage Humidity30%–75% (RH), non-condensing
