DH-HAC-B1A21P-U-IL
DH-HAC-B1A21P-U-IL

39.60 azn

Dahua
Analoq
2 MP
LED
30 m
Sabit
2.8mm
IP67
Plastik
Outdoor
39.60

1

Səbətə at AZN

DH-HAC-B1A21P-U-IL

Yeni
DH-HAC-B1A21P-U-IL

Haqqında

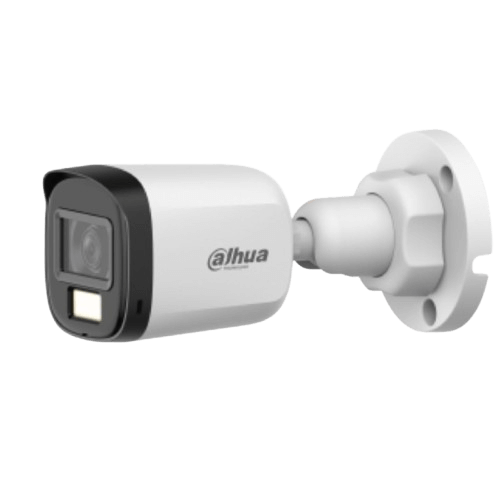

DAHUA DH-HAC-B1A21P-U-IL 2MP 2.8MM Smart Dual Light HDCVI Fixed-focal Bullet Camera

Növ Analoq
Meqapixel 2 MP
İşıqlandırma LED
İşıqlandırma məsafəsi 30 m
Obyektiv Sabit
Fokus 2.8mm
Qoruma IP67
Material Plastik
İş mühiti Outdoor

Ətraflı



Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s; NTSC: 1/30s–1/100,000 s
Min. Illumination

0.02 lux@F2.0 (Color, 30 IRE);

0.002 lux@F2.0 (B/W, 30 IRE);

0lux (Illuminator on)

S/N Ratio>65 dB
Illumination Distance

IR: 30 m (98.43 ft);

Warm light: 20 m (65.62 ft)

Illuminator On/Off ControlAuto; Manual
Illuminator Number2 (Warmlight);2 (IR light)
Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF2.0
Field of View

2.8 mm: H: 100°; V: 54°; D: 117°

3.6mm: H: 80°;V: 43°; D: 94°

6mm: H: 43°;V: 24°; D: 50°

Iris ControlFixed
Close FocusDistance

2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.8 m (2.62 ft)

6 mm: 2.4 m (7.87 ft)

Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; DWDR
WDRDWDR
White BalanceAuto;Area white balance
Gain ControlAuto;Manual
Noise Reduction2D NR
Illumination ModeSmart IR&WL; WL Mode; IR Mode
MirrorYes
Privacy MaskingOff/On (8areas, rectangle)
Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035

Video OutputVideo output choicesof CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channelbuilt-in Mic
Power Supply12 VDC ± 30%
Power ConsumptionMax 3.3 W (12VDC, LED on)
Operating Temperature–40 °C to +60°C (–40 °F to +140 °F)
Operating Humidity<95% (RH),non-condensing
Storage Temperature–40 °C to +60°C (–40 °F to +140 °F)
Storage Humidity<95% (RH),non-condensing
ProtectionIP67
Anti-corrosion LevelBasic Protection
Casing MaterialPlastic
Product Dimensions146.1 mm × 70.0mm × 69.8 mm (5.75" × 2.76" × 2.75")
Net Weight0.15 kg (0.33 lb)
Gross Weight0.23 kg (0.51 lb)
InstallationWall mount;ceiling mount; vertical pole mount
Video Frame Rate

CVI:

PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD:

PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI:

PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS:

PAL: 960H NTSC:960H
