XVR5108HS-I3
XVR5108HS-I3

306.03 azn

Dahua
XVR
8 kanal
5 MP
1 HDD
16 TB

Stokda yoxdur

Səbətə at AZN

XVR5108HS-I3

Stokda yoxdur
XVR5108HS-I3

Haqqında

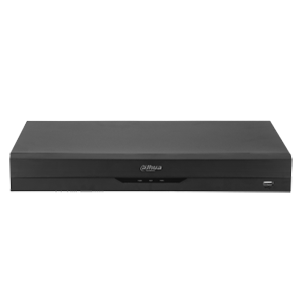

Dahua XVR5108HS-I3 8 kanal XVR 5MP; 1HDD; 16TB;

Növ XVR
Kanal sayı 8 kanal
Meqapixel 5 MP
Max HDD sayı 1 HDD
Max HDD həcmi 16 TB

Ətraflı

System
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)Advanced Model: 2 channels, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 8 face images/s each channel)
Face Recognition
Face Database CapacityUp to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)2 channels
SMD Plus
SMD Plus by Recorder8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps

IP Camera InputUp to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled
Encoding Capacity

Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)

Dual-streamYes
Video Bit Rate32 kbps–6144 kbps
Audio Sampling8 kHz, 16 bit
Audio Bit Rate64 kbps
Video Output1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera AccessONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video CompressionAI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio CompressionG.711a; G.711u; PCM
Network
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; P2P; Auto Registration
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
BrowserChrome
IE9 or later
Firefox
Network ModeSingle-address mode
Recording Playback
Record ModeGeneral, motion detection; intelligent; alarm; POS
Recording Playback1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General AlarmMotion detection; video loss; video tampering
Anomaly AlarmNo disk; disk error; disk full; offline; IP conflict; MAC conflict
Intelligent AlarmFace detection; face recognition; perimeter protection
Alarm LinkageRecord; snapshot (panoramic); IPC external alarm output; voice prompt; buzzer; log; preset; email
Ports
Audio Input1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output1-channel RCA
Two-way TalkYes (share the same audio input with the first channel)
HDD Interface1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature
RS-4851 port, for PTZ control
USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI1
VGA1
Network Port1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply12 VDC, 2 A
Power Consumption<7 W (without HDD)
Net Weight0.97 kg (2.14 lb)
Gross Weight1.39 kg (3.07 lb)
Product Dimensions260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
Packaging Dimensions333.0 mm × 89.0 mm × 315.0 mm (13.12'' × 3.51'' × 12.41'') (W × D × H)
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity≤93% (RH)
InstallationRack or desktop
CertificationsCE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
