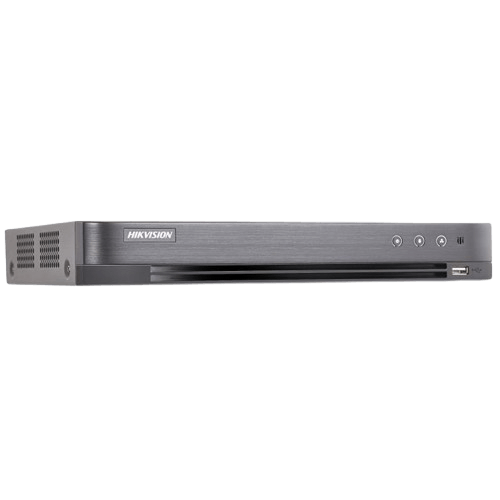

DS-7208HTHI-K2
833.08 azn
Hikvision
XVR
8 kanal
8 MP
2 HDD
10 TB
Stokda yoxdur
Haqqında
HIKVISION DS-7208HTHI-K2 TURBO HD DVR
| Növ | XVR |
| Kanal sayı | 8 kanal |
| Meqapixel | 8 MP |
| Max HDD sayı | 2 HDD |
| Max HDD həcmi | 10 TB |
Ətraflı
| DS-7208HTHI-K2 | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI input | 8 MP, 5 MP,4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD input | 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
IP videoinput | 8-ch (up to 16-ch) |
| Up to 8 MP resolution | |
| Supports H.265+/H.265/H.264+/H.264 IP cameras | |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p,1 KΩ) |
| CVBS output | 1-ch, BNC(1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC:704 × 480 |
HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz |
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz | |
| Encoding resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame rate | Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video bit rate | 32 Kbps to 16 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video& Audio |
| Synchronous playback | 8-ch |
Incoming bandwidth | 64 Mbps |
| Remote connections | 64 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,NFS, iSCSI, UPnP™,HTTPS, ONVIF |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
Two-way audio input | 1-ch, RCA (2.0 Vp-p,1 KΩ) (using the 1st audio input) |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB interface | Front panel:1 × USB 2.0 Rear panel:1 × USB 3.0 |
| Serial interface | RS-485 (half-duplex) |
| Alarm in/out | 8/4 |
| Power supply | 12 VDC |
Consumption (without HDD) | ≤ 20 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131°F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
Weight (without HDD) | ≤ 2 kg (4.4 lb) |
