DS-7204HQHI-K1/B
204.02 azn
Stokda yoxdur
Haqqında

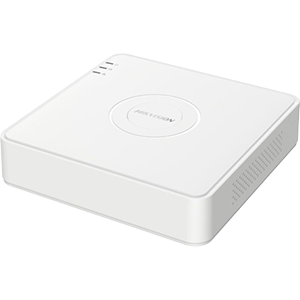

HIKVISION DS-7204HQHI-K1/B Ballun TURBO HD DVR
| Növ | XVR |
| Kanal sayı | 4 kanal |
| Meqapixel | 4 MP |
| Max HDD sayı | 1 HDD |
| Max HDD həcmi | 10 TB |
Ətraflı
| Model | DS-7204HQHI-K1/B |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding resolution | When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF |
Frame rate | Main stream: When 1080pLite mode is not enabled: For 4 MP streamaccess: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p streamaccess: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p streamaccess: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080pLite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps(P)/ 30fps(N) |
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video bitrate | 32 Kbps to 6 Mbps |
| Dual stream | Support |
| Stream type | Video, Video &Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
IP videoinput | 2-ch (up to 6-ch) |
| Up to 6 MPresolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
Analog videoinput | 4-ch |
| Balun interface, supporting coaxitron connection | |
HDTVI input | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50,720p30, 720p25 *: The 3 MP signal inputis only available for channel 1. |
| AHD input | 4 MP25, 4 MP30,1080p25, 1080p30, 720p25,720p30 |
| HDCVI input | 4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
CVBS output | 1-ch, BNC (1.0 Vp-p,75 Ω) |
| Resolution: PAL:704 × 576,NTSC: 704 × 480 | |
| HDMI/VGA output | 1-ch, 1920× 1080/60Hz, 1280× 1024/60Hz, 1280× 720/60Hz, 1024× 768/60Hz |
| Audio input | 1-ch, RCA (2.0Vp-p, 1 KΩ) |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (usingthe first audioinput) |
| Synchronous playback | 4-ch |
| Network | |
| Remote connections | 32 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Rear panel: 2 × USB2.0 |
| Alarm in/out | N/A |
| General | |
| Power supply | 12 VDC |
Consumption (without HDD) |
≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 260 × 222 × 45 mm(10.2 × 8.7 ×1.8 inch) |
| Weights (without HDD) | ≤ 1.16 kg (2.6 lb) |
