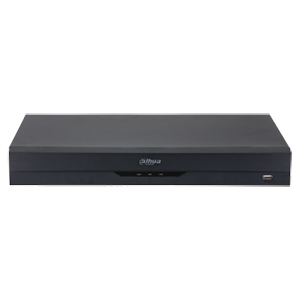

XVR5116HS-I3
https://eurotechnology.az/product/xvr5116hs-i3
Dahua XVR5116HS-I3 WizSense 16 kanal xvr, 5 meqapiksel, 1 HDD, maks 16TB HDD həcmi. 24 kanala qədər IP kamera girişləri və hər bir kanal 6 MP-ə qədər dəstəkləyir. Maksimum 128 Mbps daxil olan bant genişliyi. 2 kanal üz tanima, 4 kanal perimetr mühafizəsi, 16 kanal SMD plus, POS
XVR5116HS-I3
442.04 azn
XVR5116HS-I3
https://eurotechnology.az/product/xvr5116hs-i3
Dahua XVR5116HS-I3 WizSense 16 kanal xvr, 5 meqapiksel, 1 HDD, maks 16TB HDD həcmi. 24 kanala qədər IP kamera girişləri və hər bir kanal 6 MP-ə qədər dəstəkləyir. Maksimum 128 Mbps daxil olan bant genişliyi. 2 kanal üz tanima, 4 kanal perimetr mühafizəsi, 16 kanal SMD plus, POS
Haqqında
Dahua XVR5116HS-I3 WizSense 16 kanal xvr, 5 meqapiksel, 1 HDD, maks 16TB HDD həcmi. 24 kanala qədər IP kamera girişləri və hər bir kanal 6 MP-ə qədər dəstəkləyir. Maksimum 128 Mbps daxil olan bant genişliyi. 2 kanal üz tanima, 4 kanal perimetr mühafizəsi, 16 kanal SMD plus, POS
| Növ | XVR |
| Kanal sayı | 16 kanal |
| Meqapixel | 5 MP |
| Max HDD sayı | 1 HDD |
| Max HDD həcmi | 16 TB |
Ətraflı
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity | Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps. |
| Video Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Audio Sampling | 8 KHz, 16 bit |
| Audio Bit Rate | 64 Kbps |
| Video Output | 1 HDMI ,1 VGA It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711u/PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iPhone, iPad, Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode. |
| Backup Method | USB Device/Network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection, Video Loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| Audio Input | 1-channel RCA (external) 16-channel BNC (coaxial audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA Port, up to 16TB, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 Port, for PTZ Control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | DC12V, 2A |
| Power Consumption | Lower than 12 W |
| Net Weight | 1.17 kg (2.58 lb) |
| Gross Weight | 1.57 kg (3.46 lb) |
| Product Dimensions | Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm 10.24" × 9.37" × 1.87" (W × D × H) |
| Packaging Dimensions | 333.0 mm × 89.0 mm × 315.0 mm 13.11" × 3.50" × 12.40" (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
