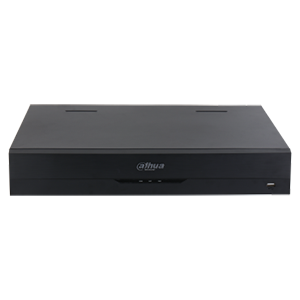

NVR2108HS-I
NVR2108HS-I

306.03 azn

Dahua
NVR
8 kanal
12 MP
1 HDD
8 TB
306.03

1

Səbətə at AZN

NVR2108HS-I

NVR2108HS-I

Haqqında

Dahua NVR2108HS-I 8 kanal NVR; 16TB HDD; 6×1080p@30 fps;1 kanal uz tanima; 2 kanal perimetr protection; 4 kanal SMD Plus; Bandwidth 80 Mbps;

Növ NVR
Kanal sayı 8 kanal
Meqapixel 12 MP
Max HDD sayı 1 HDD
Max HDD həcmi 8 TB

Ətraflı

System
Main ProcessorIndustrial-grade embedded processor
Operating SystemEmbedded Linux
Operation InterfaceWeb/operating in local GUI
Video
Access Channel8 channels
Network Bandwidth80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
Resolution12M/8M/5M/4M/3M/2M/720p/D1
Decoding Capability

AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps

AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

Video Output1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K
Multi-screen Display1/4/8/9
Third Party Camera AccessOnvif, RTSP
Compression
VideoH.264/H.265/Smart H.264+/Smart H.265+/MJPEG
AudioPCM/G711A/G711U/G26/AAC
Network
Network ProtocolHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
Mobile Phone AccessAndroid, iOS
InteroperabilityONVIF (profile T/profile S/profile G), CGI, SDK
BrowserChrome, IE9 or above, Firefox
Record Playback
Multi-channel PlaybackUp to 8 channels playback
Record ModePriority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
StorageLocal HDD and network
BackupUSB device
Playback Function

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame

2. Full screen, backup (cut/file), partially enlarge, audio on/off

SMD Plus
Performance4 channels
AI SearchSearch by target classification (human, vehicle)
Face Recognition
PerformanceMax 8 face pictures/sec processing
1 channel video stream face recognition
Stranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image
Database ManagementUp to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database ApplicationEach database can be applied to video channels independently
Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Alarm LinkageVideo recording, snapshot, log, preset, tour
Perimeter Protection
Performance2 channels
Object classificationHuman/Vehicle secondary recognition for tripwire and intrusion
AI SearchSearch by target classification (human, vehicle)
Alarm
General AlarmMotion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly AlarmFront-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm LinkageVideo recording, snapshot, log, preset, tour
External Port
HDD1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature
USB1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI1
VGA1
Network1 RJ–45 port (10/100 Mbps)
RCA Input1
RCA Output1
General Parameter
Power SupplyDC 12V, 1.5A
Power ConsumptionTotal output of NVR is ≤ 10W (without HDD)
Net Weight0.81 kg (1.79 lb)
Gross weight1.38 kg (3.04 lb)
Product Dimensions260 mm × 232.7 mm × 47.6 mm (W × L × H)
10.24 inch × 9.16 inch × 1.87 inch (W × L × H)
Package Dimensions89 mm × 333 mm × 315 mm (W × L × H)
3.50 inch × 13.11 inch × 12.40 inch (W × L × H)
Operating Temperature-10°C to +55°C (+14°F to +113°F)
Storage Temperature0°C to +40°C (+32°F to +104°F)
Operating Humidity10%–93%
Storage Humidity30%–85%
Operating Altitude3000 m (9843 ft)
InstallationDesktop mounting
CertificationsCE/FCC
