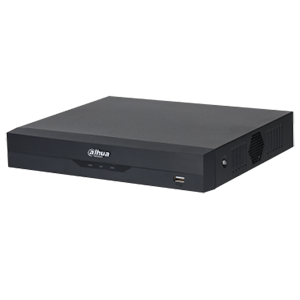

NVR2104-S2
NVR2104-S2

136.01 azn

Dahua
NVR
4 kanal
5 MP
1 HDD
6 TB

Stokda yoxdur

Səbətə at AZN

NVR2104-S2

Stokda yoxdur
NVR2104-S2

Haqqında

Dahua NVR2104-S2 4 kanal NVR; 6TB HDD; 4×1080p@30 fps; 4 kanal perimetr protection; 4 kanal SMD Plus; Bandwidth 80 Mbps;

Növ NVR
Kanal sayı 4 kanal
Meqapixel 5 MP
Max HDD sayı 1 HDD
Max HDD həcmi 6 TB

Ətraflı

System
Main ProcessorIndustrial-grade embedded processor
Operating SystemEmbedded Linux
Operating InterfaceWeb; Local GUI
AI
AI by CameraPerimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)4
SMD Plus
SMD Plus by Camera4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Access Channel4 channels
Network BandwidthAccess: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution5MP; 4MP; 3MP; 2MP; 720p; D1
Decoding Capability2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
Video Output1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display1, 4 views
Third-party Camera AccessOnvif
Compression Standard
Video CompressionSmart H.265; H.265; Smart H.264; H.264
Audio CompressionPCM; G711A; G711U; G726
Network
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF (profile T/S/G); CGI; SDK
BrowserChrome; IE 9 or later; Firefox
Recording Playback
Multi-channel PlaybackUp to 4 channels
Record ModeManual record; alarm record; motion detection record; schedule record
Storage MethodLocal HDD and network
Backup MethodUSB device
Playback Function1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (video clip/file); partially zom in; audio on/off
Alarm
General AlarmMotion detection; privacy masking; video loss; PIR alarm
Anomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Intelligent AlarmPerimeter protection; SMD Plus
Alarm LinkageRecording; snapshot; buzzer; log; preset; email; tour
Port
Audio Input1
Audio Output1
HDD Interface1 SATA port, up to 6 TB. The maximum HDD capacity varies with environment temperature
USB2 rear USB 2.0 ports
HDMI1
VGA1
Network Port1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
General
Power Supply12 VDC, 1.5 A
Power ConsumptionTotal output of NVR is ≤ 10 W (without HDD)
Net Weight0.42 kg (0.93 lb)
Gross Weight1.03 kg (2.27 lb)
Product Dimensions204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.13" × 1.80") (W × L × H)
Packaging Dimensions96 mm × 364 mm × 261 mm (3.78" × 14.33" × 10.28") (W × L × H)
Operating Temperature–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity10%–93% (RH)
InstallationRack or desktop
CertificationsCE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4
FCC: Part 15 Subpart B
