HAC-HDW1500CLQP-IL-A-0280B-S2
HAC-HDW1500CLQP-IL-A-0280B-S2

85.01 azn

Dahua
Indoor
Analoq
5 MP
LED
20 m
Mic
Sabit
2.8mm
IP67
Plastik
85.01

1

Səbətə at AZN

HAC-HDW1500CLQP-IL-A-0280B-S2

HAC-HDW1500CLQP-IL-A-0280B-S2

Haqqında

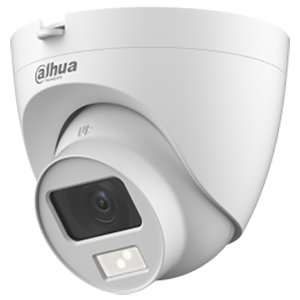

DAHUA HAC-HDW1500CLQP-IL-A-0280B-S2 ( 2.8MM ) 5MP HDCVI KAMERA

İş mühiti Indoor
Növ Analoq
Meqapixel 5 MP
İşıqlandırma LED
İşıqlandırma məsafəsi 20 m
Mikrofon Mic
Obyektiv Sabit
Fokus 2.8mm
Qoruma IP67
Material Plastik

Ətraflı

Camera
Image Sensor5 MP CMOS
Max. Resolution2880 (H) × 1620 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination DistanceIR: 20 m (65.62 ft)
Warm Light: 20 m (65.62 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number2 (Warm light);2 (IR light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Iris ControlFixed
Close Focus Distance2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm

56 m

(183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

76 m

(249.34 ft)

30.4 m

(99.74 ft)

15.2 m

(49.87 ft)

7.6 m

(24.93 ft)

Video
Video Frame RateCVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; DWDR;
WDRDWDR
White BalanceAuto;Area white balance
Gain ControlAuto/Manual
Noise Reduction2D NR
Illumination ModeSmart IR&WL; WL Mode; IR Mode
MirrorYes
Privacy MaskingOff/On (8 areas, rectangle)
Certification
CertificationsCE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic
Power
Power Supply12 VDC ± 30%
Power ConsumptionMax 4.5 W (12 VDC, WLED on)
Environment
Operating Temperature–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Structure
Casing MaterialPlastic
Product Dimensionsφ97.1 mm × 93.8 mm (φ3.82" × 3.69")
Net Weight0.19 kg (0.42 lb)
Gross Weight0.3 kg (0.66 lb)
InstallationWall mount; ceiling mount; vertical pole mount
