HAC-HDW1209TLQP-LED-0280B
HAC-HDW1209TLQP-LED-0280B

49.30 azn

Dahua
Analoq
2 MP
LED
Sabit
2.8
20 m
IP67
Plastik

Stokda yoxdur

HAC-HDW1209TLQP-LED-0280B

Stokda yoxdur
HAC-HDW1209TLQP-LED-0280B

Haqqında

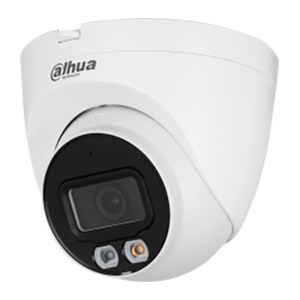

Dahua HAC-HDW1209TLQP-LED-0280B 2 MP HD-CVI Full Color (rəngli) kamera; Piksel 1920x1080; IR işıqlandırma - 20 m; F2.8 mm; Bucaq-106°;

Növ Analoq
Meqapixel 2 MP
İşıqlandırma LED
Obyektiv Sabit
Fokus 2.8
İşıqlandırma məsafəsi 20 m
Qoruma IP67
Material Plastik

Ətraflı

Camera
Image Sensor1/2.8" CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination0.01 Lux/F1.6, 0 Lux white light on

S/N RatioMore than 65dB
IR Distance20 m (65.61 ft)

IR On/Off ControlAuto / Manual
IR LEDs1

Lens
Lens TypeFixed lens / Fixed iris
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max ApertureF1.6
Angle of View

2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical);

3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)

Focus ControlN/A
Close Focus Distance

2.8 mm: 0.7 m (2.29 ft);

3.6 mm: 1.2 m (3.94 ft)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.


DORI

Definition

Distance
Detect

25px/m

(8px/ft)

2.8mm: 43.9 m (144.02 ft)

3.6mm: 55.2 m (181.1 ft)

Observe

63px/m

(19px/ft)

2.8mm: 17.5 m (57.41 ft)

3.6mm: 22.1 m (72.5 ft)

Recognize

125px/m

(38px/ft)

2.8mm: 8.8 m (28.87 ft)

3.6mm: 11.0 m (36.1 ft)

Identify

250ppm

(76px/ft)

2.8mm: 4.4 m (14.43 ft)

3.6mm: 5.5 m (18.0 ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution1080p (1920 × 1080); 720p (1280× 720); 960H (960 × 576/960 × 480)

Frame Rate

CVI:

PAL: 1080p@25 fps; 720p@25 fps;

NTSC: 1080p@30 fps; 720p@30 fps;

AHD:

PAL: 1080p@25 fps;

NTSC: 1080p@30 fps

TVI:

PAL: 1080p@25 fps;

NTSC: 1080p@30 fps

CVBS:

PAL: 960H;

NTSC: 960H

Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 3.0W (12V DC, IR on)
Environmental
Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal ResistanceIP67
Construction
CasingInner core: metal + plastic Cover: plastic Pedestal: plastic
Dimensionsφ97.1 mm × 91.4 mm (φ3.82" × 3.6")
Net Weight0.21 Kg (0.46 lb)
Gross Weight0.28 Kg (0.62 lb)
