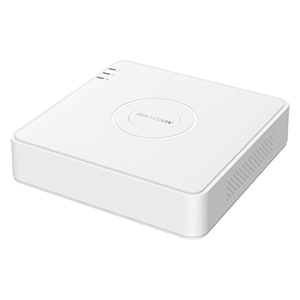

DS-7204HTHI-K1
272.03 azn
Stokda yoxdur
Haqqında
DS-7204HTHI-K1 8MP HD TVI AHD CVI CVBS IP DIGITAL VIDEO RECORDER HIKVISION
| Növ | XVR |
| Kanal sayı | 4 kanal |
| Meqapixel | 8 MP |
| Max HDD sayı | 1 HDD |
| Max HDD həcmi | 10 TB |
Ətraflı
| Model | DS-7204HTHI-K1 |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame rate | Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video bitrate | 32 Kbps to 16 Mbps |
| Dual stream | Support |
| Stream type | Video, Video &Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
IP videoinput | 4-ch (up to 8-ch) |
| Up to 8 MPresolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
Analog videoinput | 4-ch |
| BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50,720p30, 720p25 |
| AHD input | 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL:704 × 576,NTSC: 704 × 480 |
HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280× 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz, 1280× 720/60Hz, 1024 × 768/60Hz |
| Audio input | 4-ch, RCA (2.0Vp-p, 1 KΩ) |
| Audio output | 1-ch, RCA(Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (usingthe first audioinput) |
| Synchronous playback | 4-ch |
| Network | |
| Remote connections | 32 |
Network protocols | TCP/IP, PPPoE, DHCP,Hik-Connect, DNS, DDNS,NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 × USB 2.0 Rear panel:1 × USB 3.0 |
| Alarm in/out | 4/1 |
| General | |
| Power supply | 12 VDC |
Consumption (without HDD) |
≤ 15 W |
| Working temperature | -10 °C to +55 °C (+14 °F to+131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weights (without HDD) | ≤ 1.5 kg (3.3 lb) |
